Input Voltage Range:19.2-31.2V DC
Power Consumption:7.5 W @ 60 °C (140 °F)
Current Capacity:2.0 A @ 5VDC, 0.8A @ 24VDC
Module Compatibility:Up to Sixteen (16) CompactLogix modules
Temperature Range:-40°C to +70°C
Dimensions:118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.)
Weight:630 g (1.39 lb)

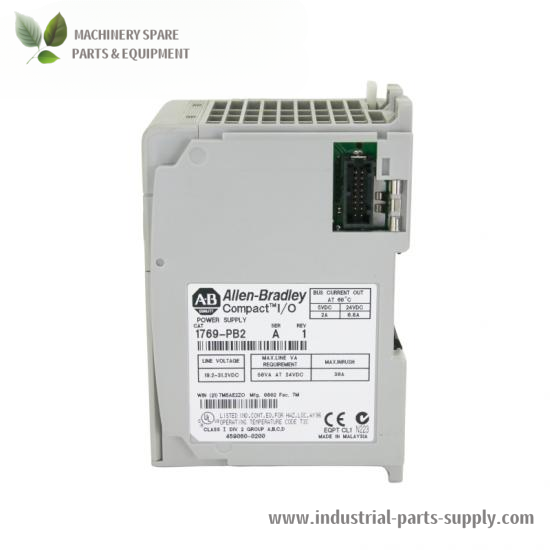

The AB 1769-PB2 Control Module is engineered to withstand the rigors of industrial environments, offering unparalleled reliability and longevity. Its modular design allows for easy integration into existing control systems, facilitating efficient and effective system management.
With its extensive digital input/output capabilities, this module supports a wide range of applications, from simple on/off control scenarios to complex multi-variable process monitoring. The included Modbus RTU interface ensures seamless connectivity with various PLC systems and SCADA software, enhancing overall system interoperability.
Engineered with advanced microcontrollers, the 1769-PB2 provides rapid response times and precise control, crucial for achieving optimal performance in automated processes. Its high current handling capacity makes it suitable for applications requiring significant load switching.
The IP20 enclosure type not only protects against dust and splashes but also simplifies installation by allowing easy access to connection terminals. This feature, combined with its panel mount design, ensures a compact footprint, ideal for space-constrained industrial settings.
Comprehensive documentation and support resources are provided, ensuring that users can quickly and easily integrate the AB 1769-PB2 into their projects. This includes detailed technical specifications, application notes, and troubleshooting guides, empowering users to maximize the module’s potential.
